Gorm Moto

NX650 Rally Tower

NX650 Rally Tower

Regular price 9 500 SEK
Regular price Sale price 9 500 SEK
Sale Sold out
Tax included.

**PRE SALE ITEM**
Shipping is calculated to start early October.

This is a limited run and designed specifically for the RD02 and RD08 Honda NX650 Dominator. Can be used without modifications to the existing wiring loom and the CDI, fuse-box and cables can be housed in and on the tower if wanted. Recommend is to use a smaller and digital gauge cluster as the OEM cluster might be hard to fit.

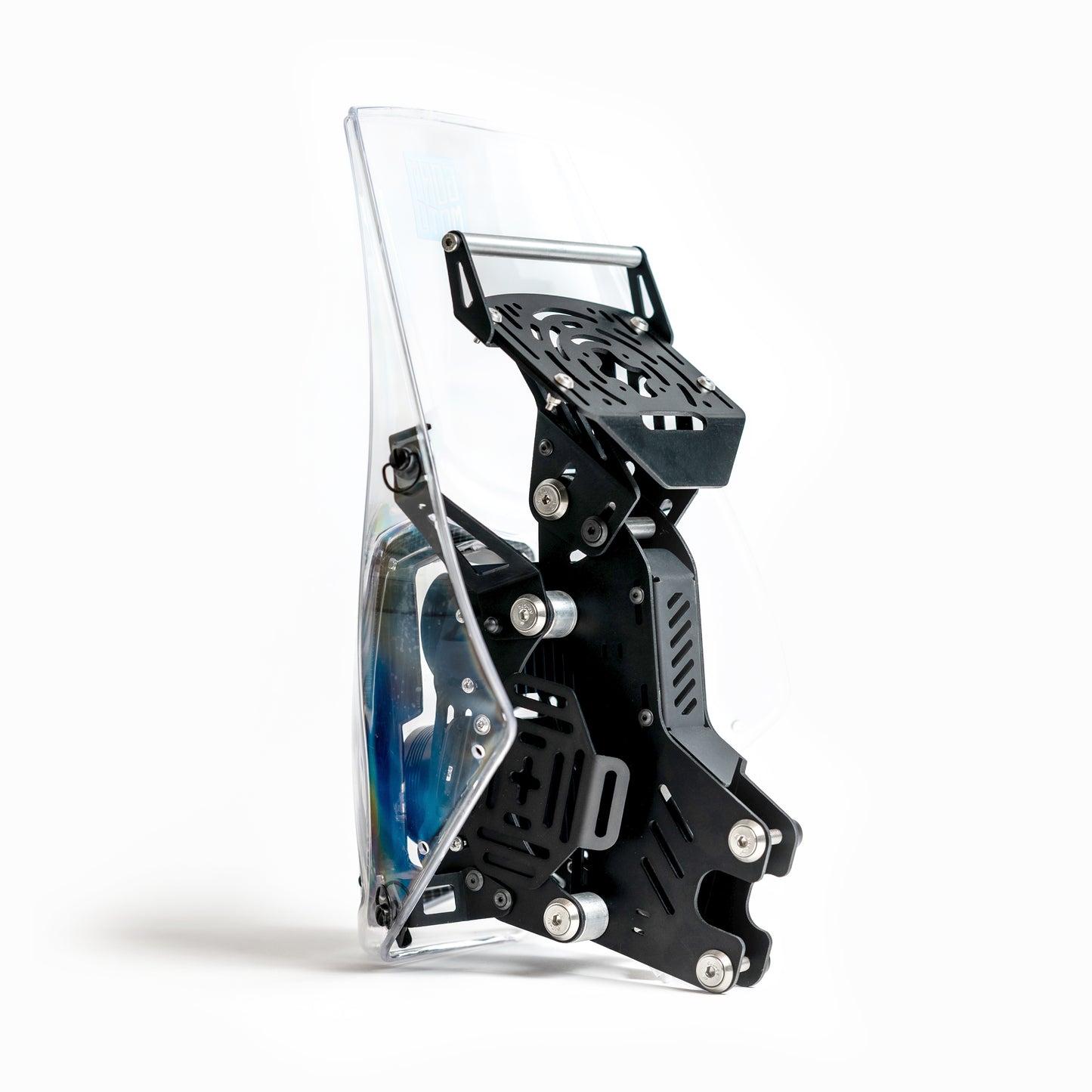

Base structure is made out of aluminum and anodised black and spacers are raw aluminum. There are zip tie mounting holes along the base structure but it's also easy to drill new mounting holes or adding fixture points for accessories on the base structure. Top plate has a AMPS hole pattern (Diagonal) for fastening GPS or other mounts but can be used for speedometer, road book or anything els.

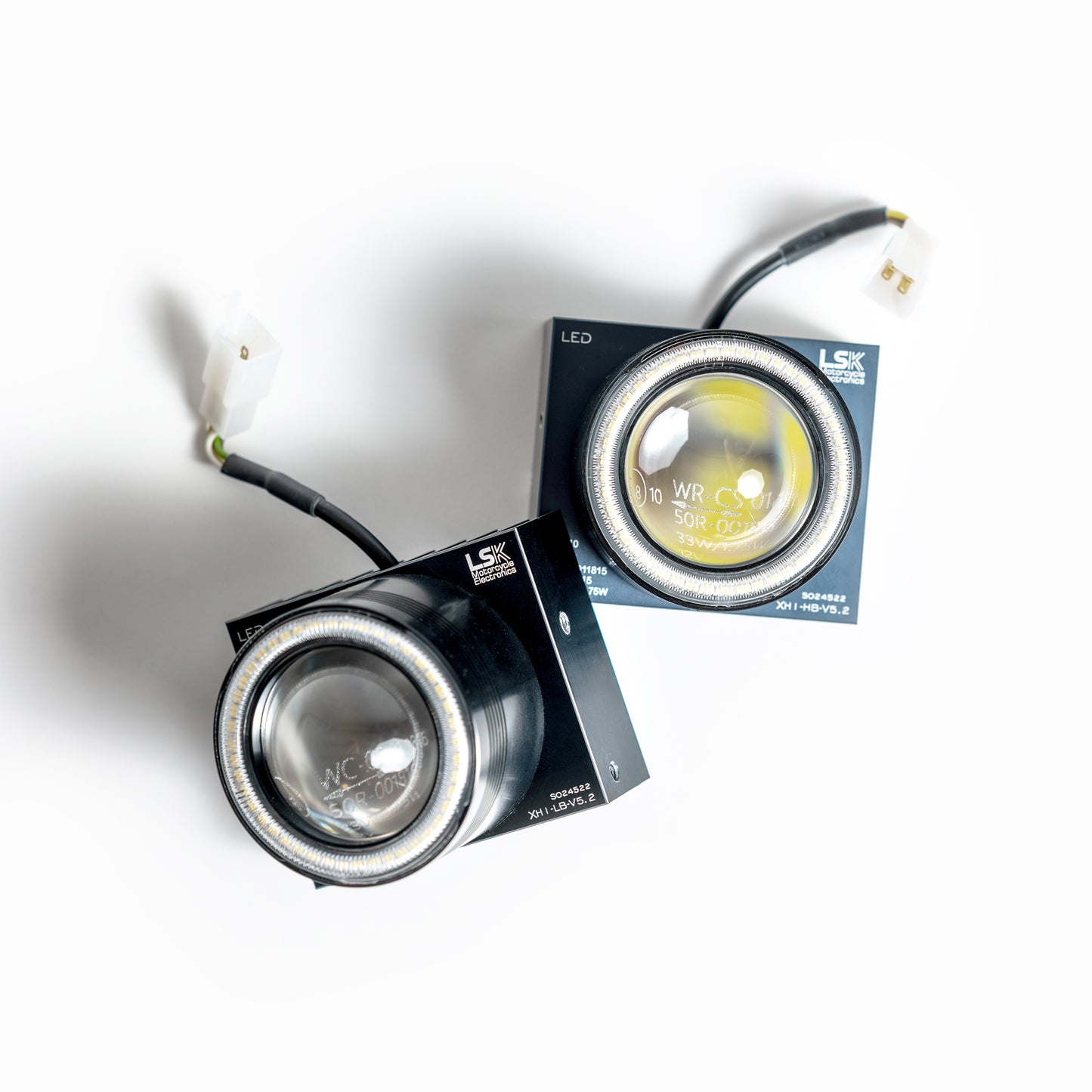

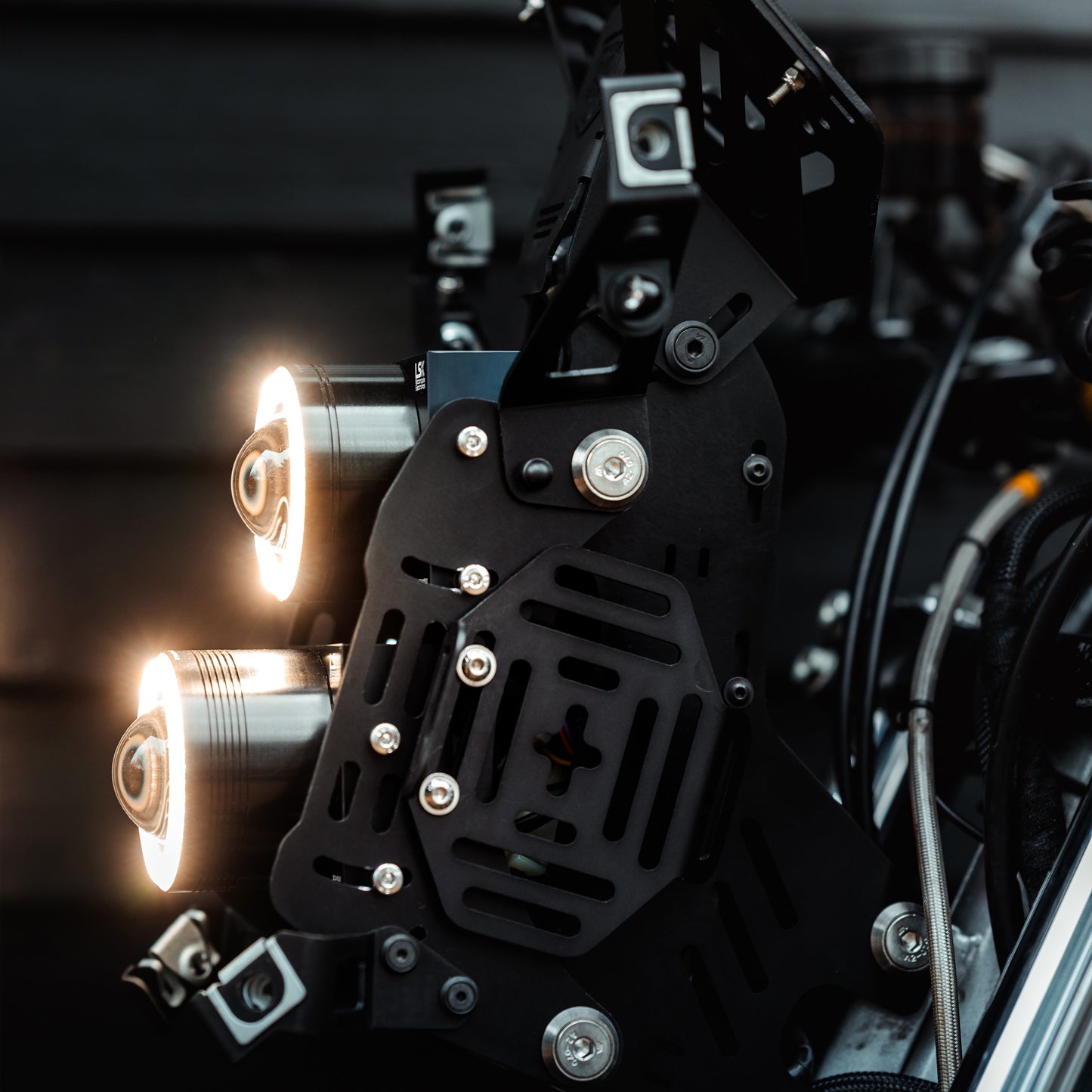

Lights are LED projections lights that are ECE approved and street legal in Europe, low and high beam module with either parking light or DRL ring light feature. For technical details check LSK Electronics

Turn signal mounts are included and can be used with most M8 based tune signals also two accessory plates aer included that can be used to extended the usage of the tower. For example to house a small medical kit or toolbox.

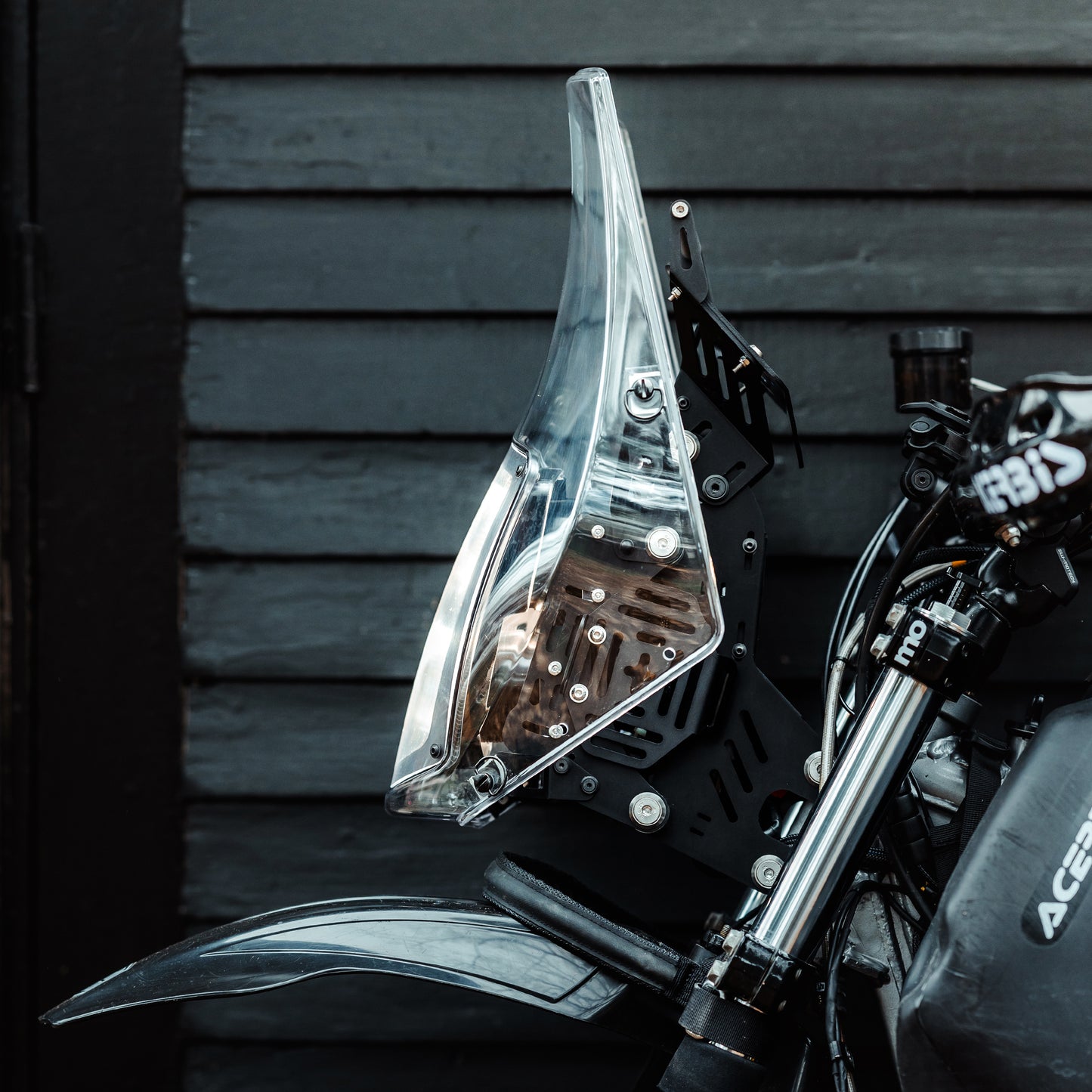

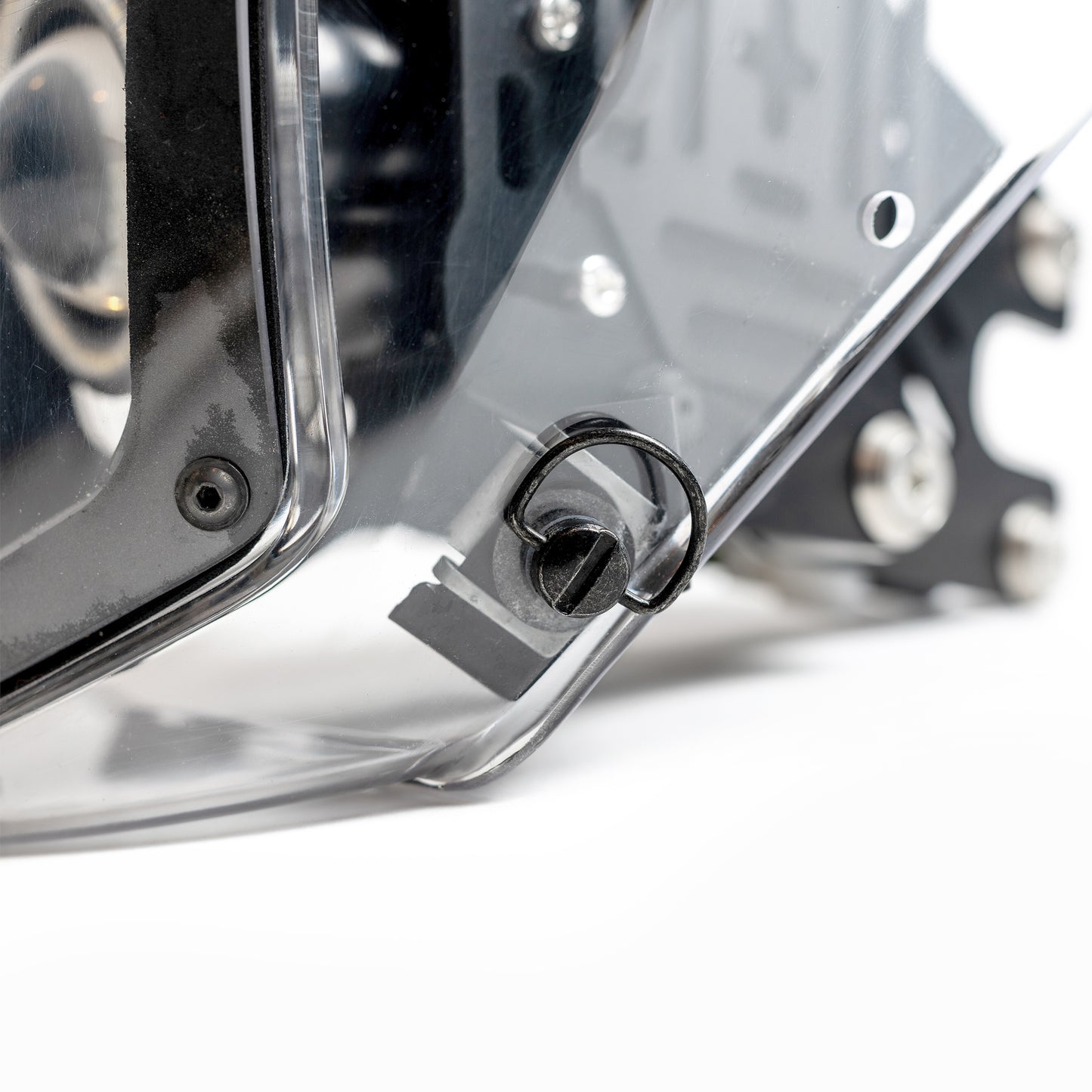

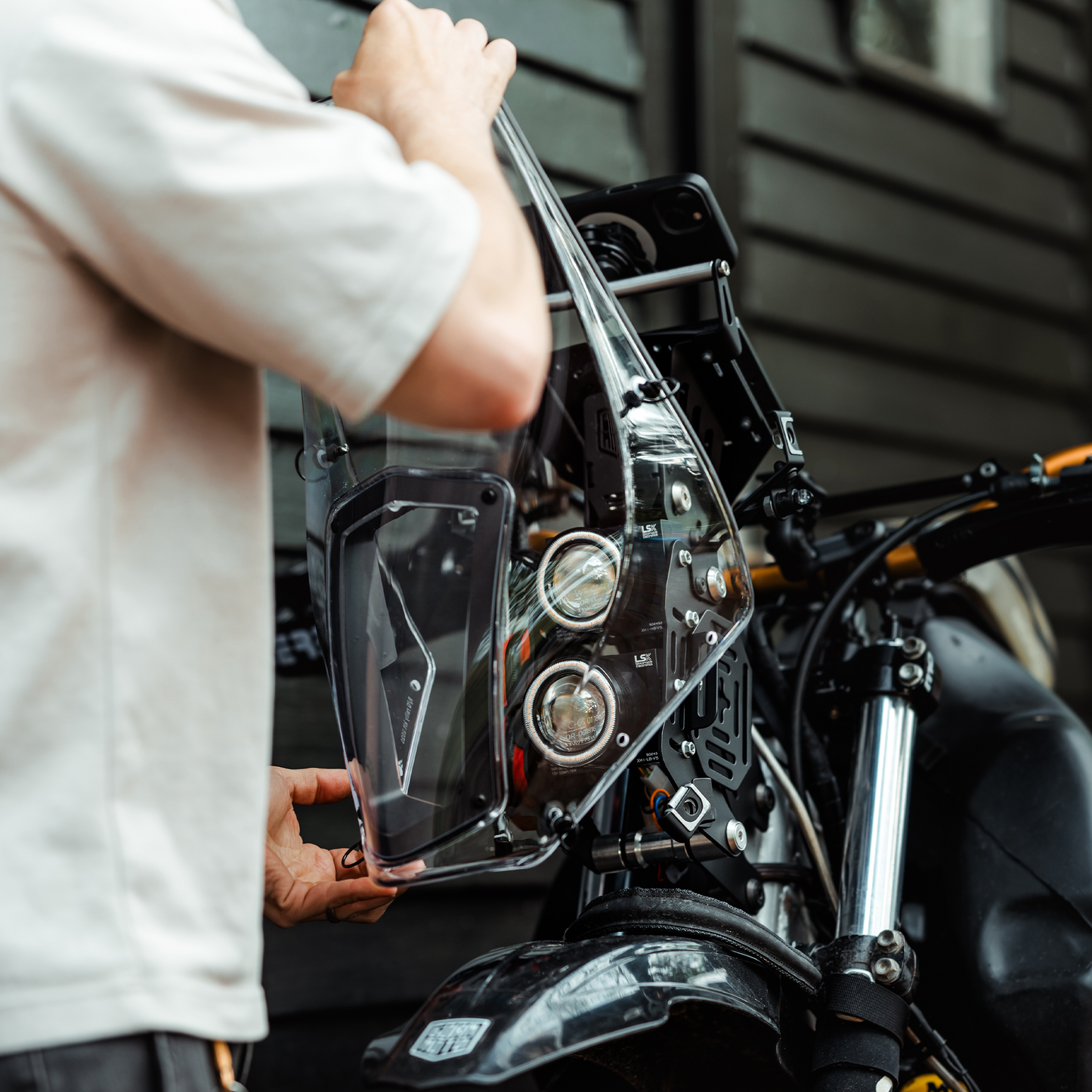

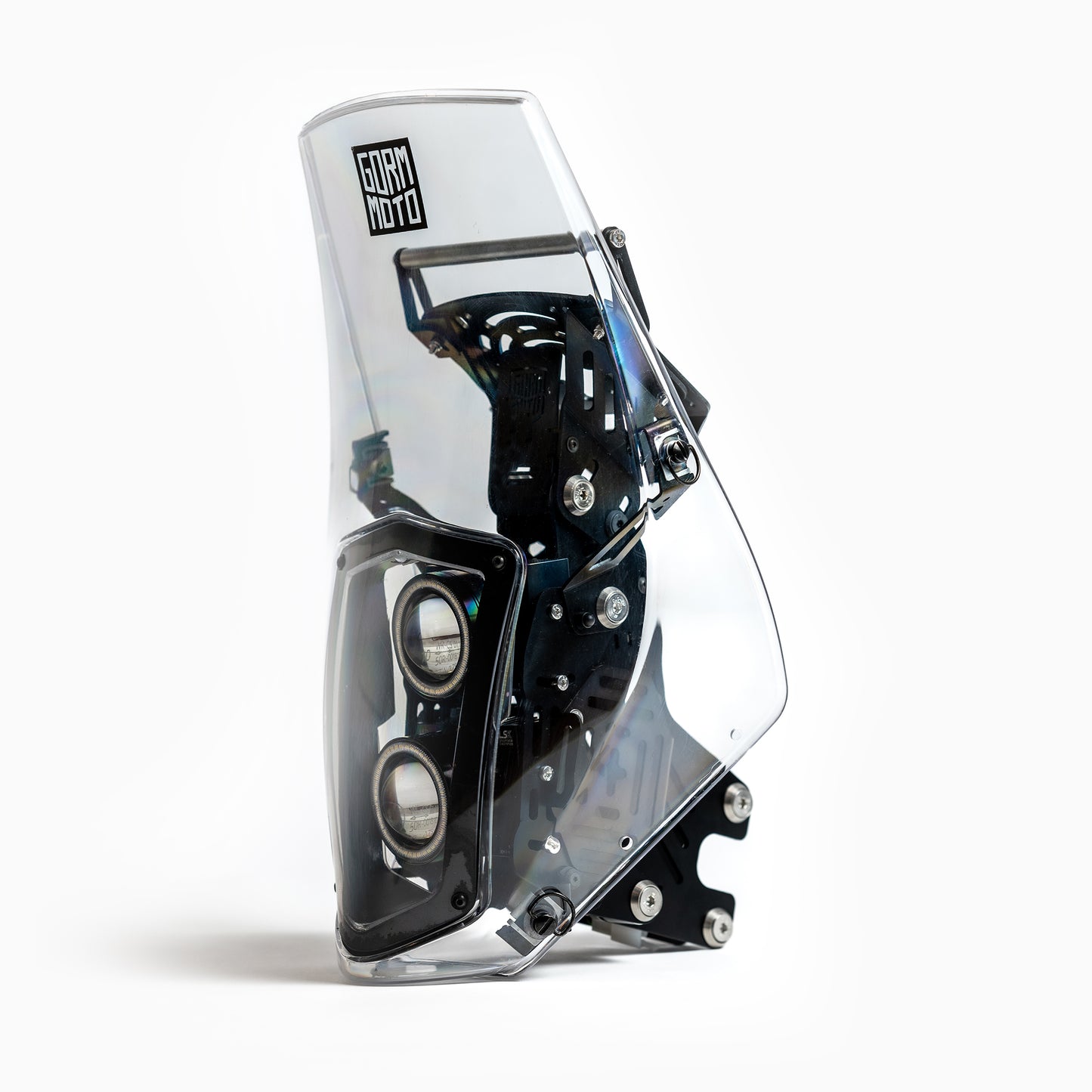

Windscreen uses DZUS Quarter-Turn fasteners for easy access to the full tower for both maintenance and cleaning needs.

Comes with all stainless steel hardware and assembly instructions. To plug straight into the existing wiring a H4 Male plug needs to be added to the lights and a bullet connector for the parking lights.

Some modifications might be needed depending on your handlebar and hand guard usage. If you have any questions regarding fitment don't hesitate to reach out.

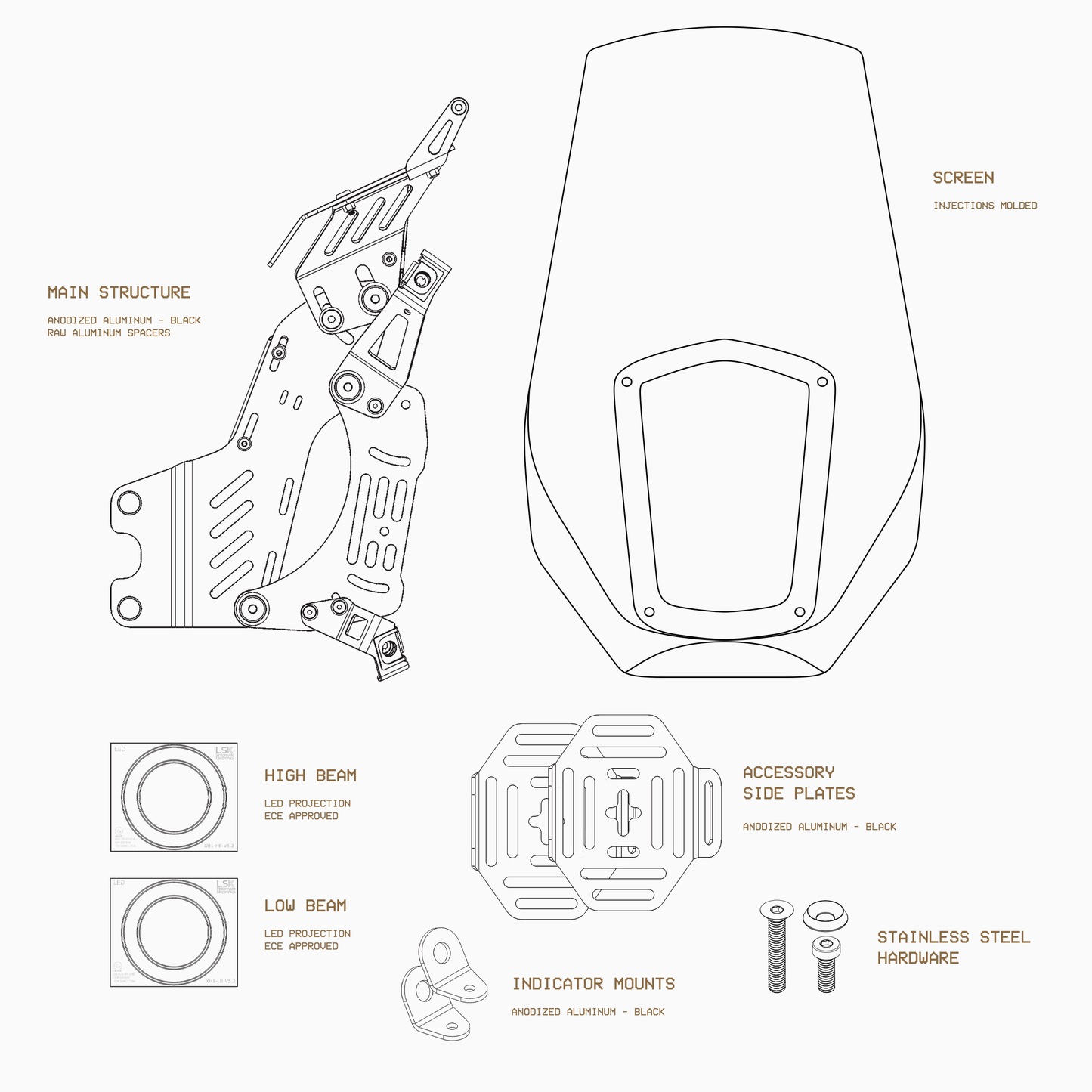

Included parts:

  • Base structure
  • Indicator mounts
  • Accessory side plates

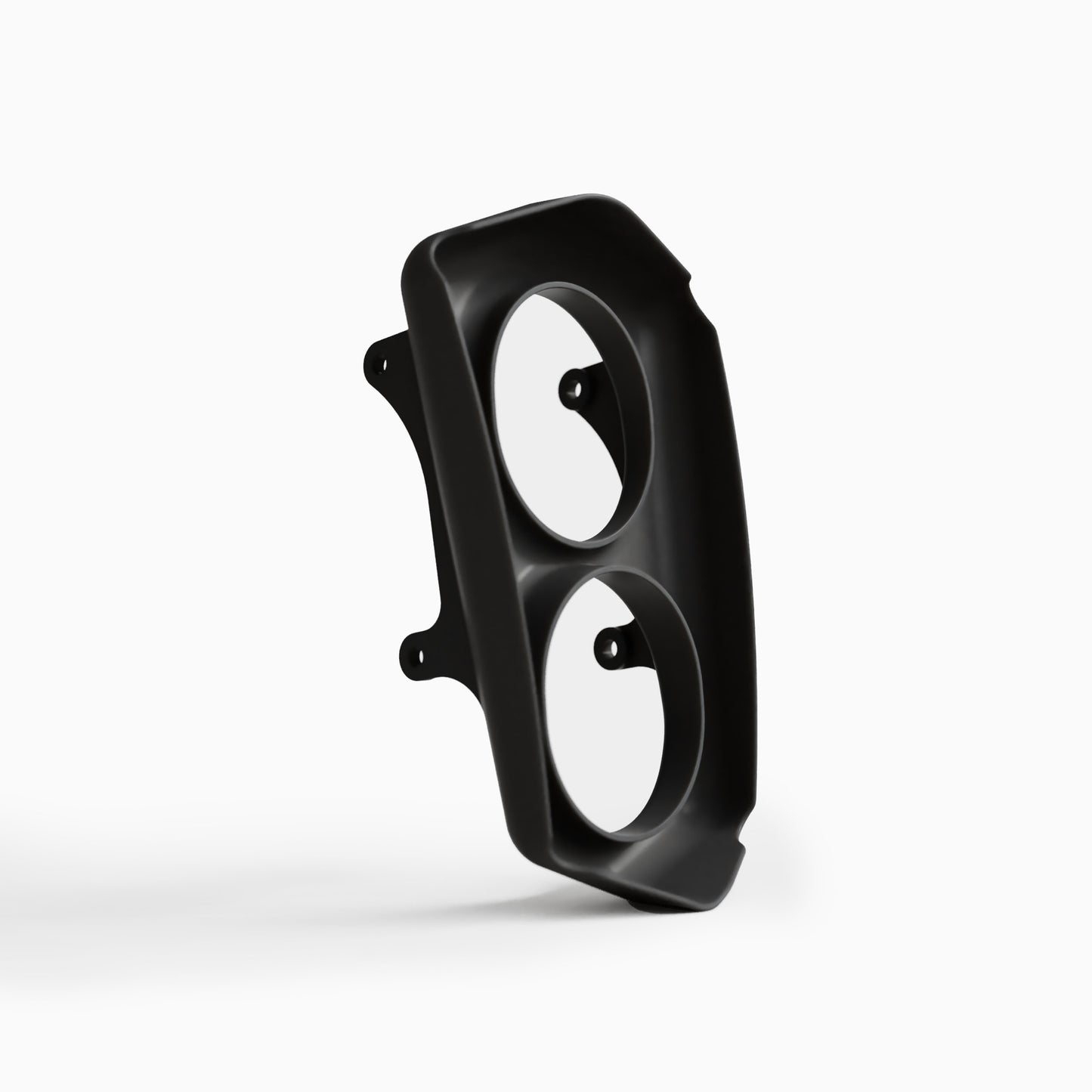

  • Windshield with integrated shader and headlights cover
  • LED projection high beam module
  • LED projectionLow beam module
  • Stainless steel fasteners

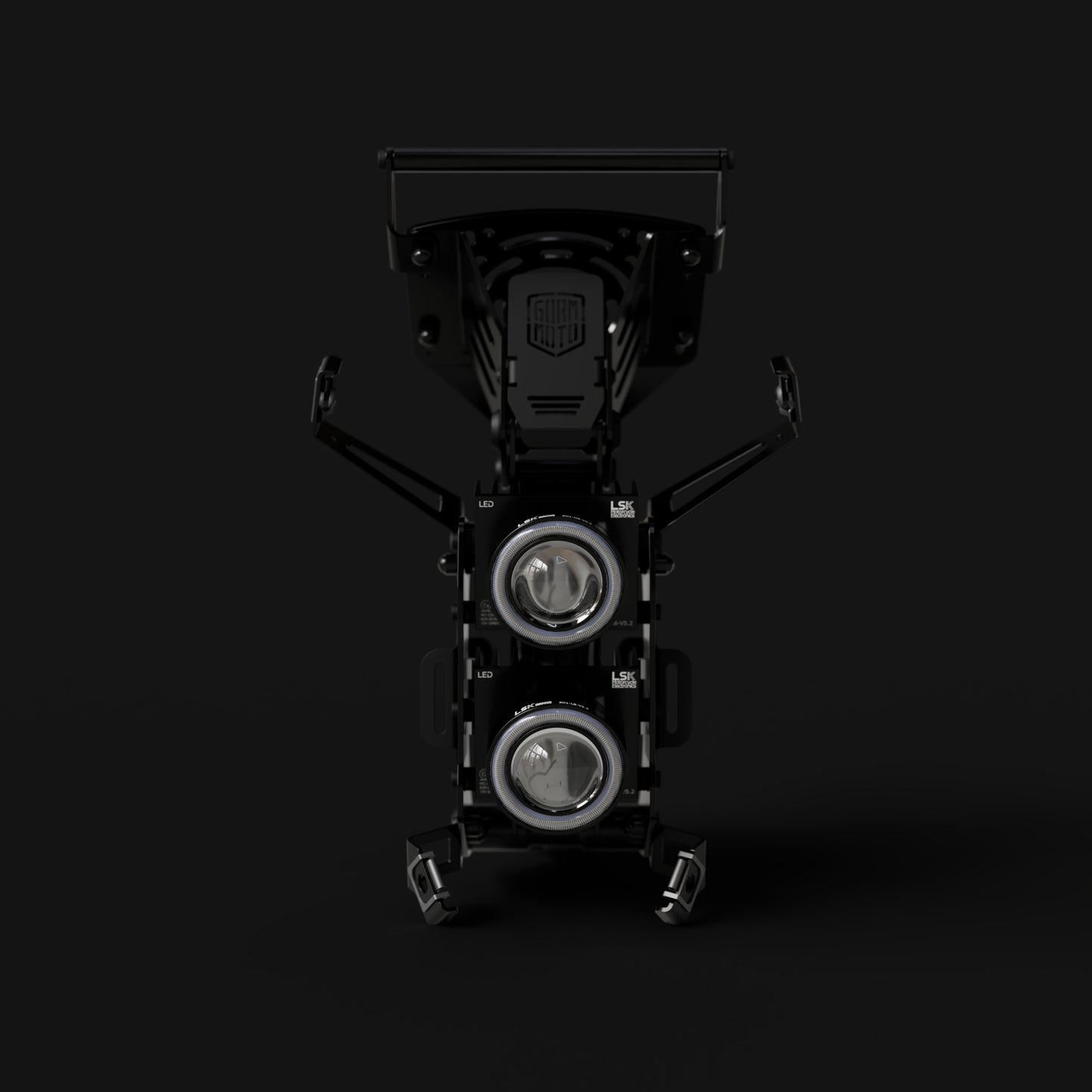

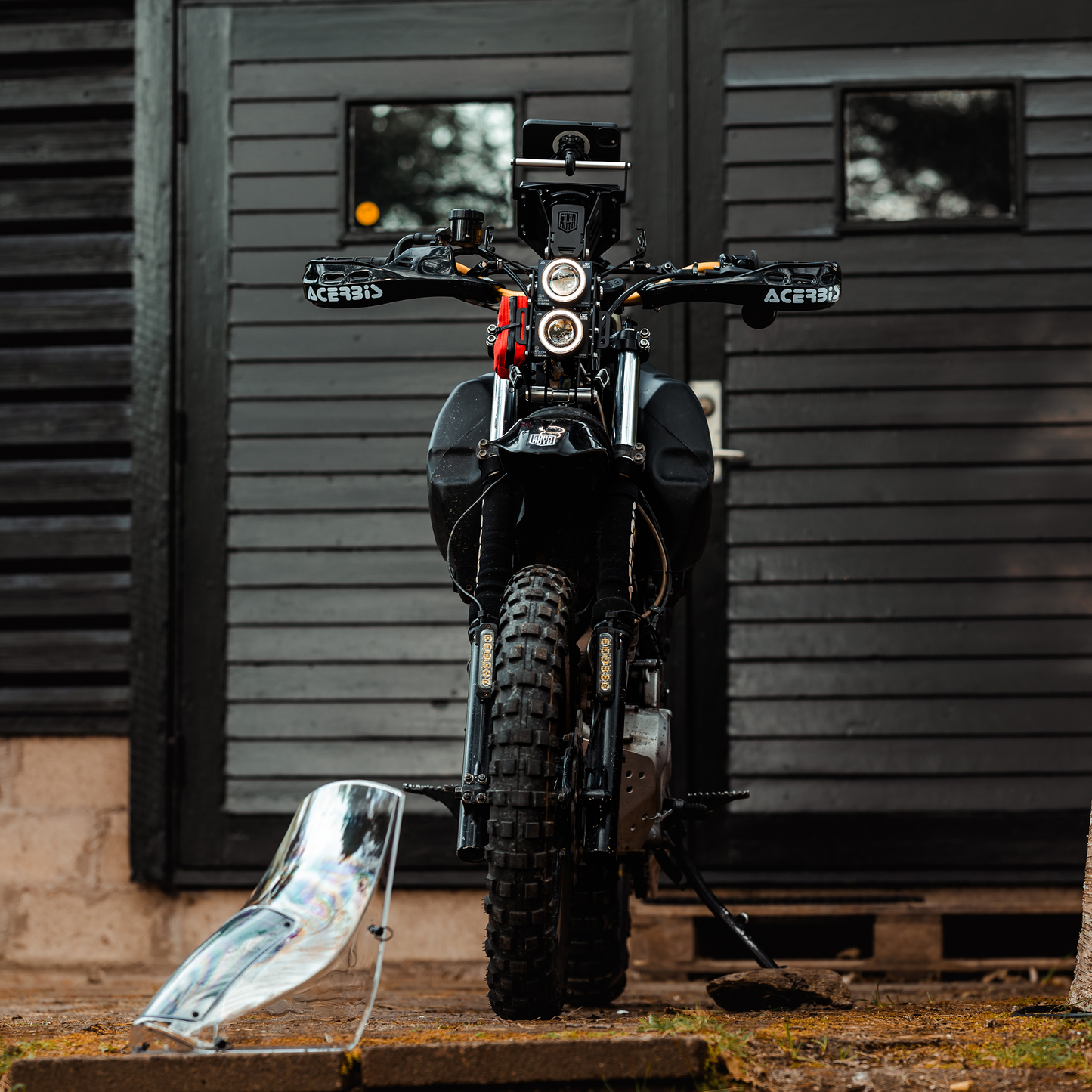

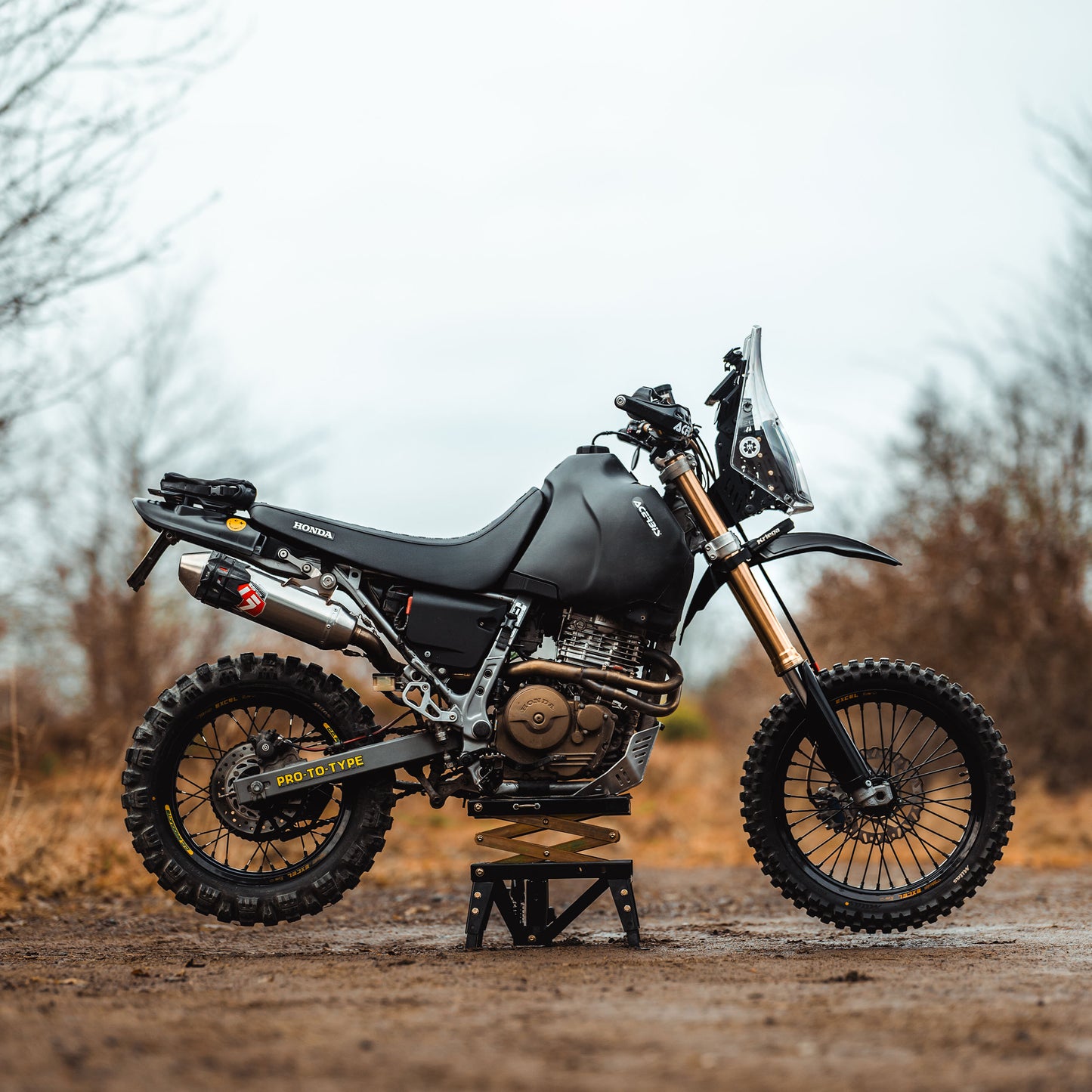

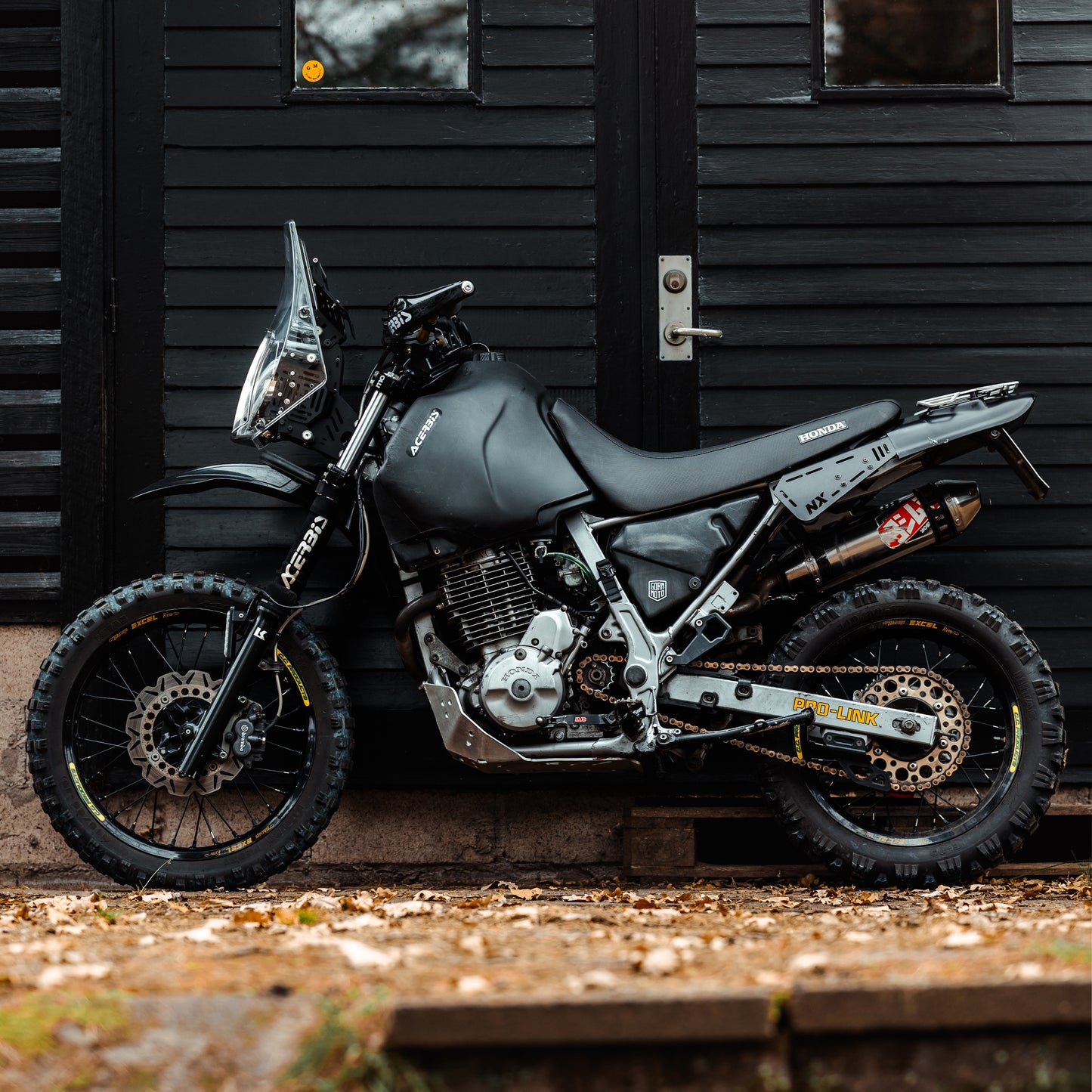

*Disclaimer* 3D render images are the correct shape of the structure, photos show how the tower sits on the bike, the structure is slightly different in these images



Details

Tower structure weight ≈ 1600 gram
Screen wright ≈ 700 gram

Materials

Alumium strucure

Dimensions

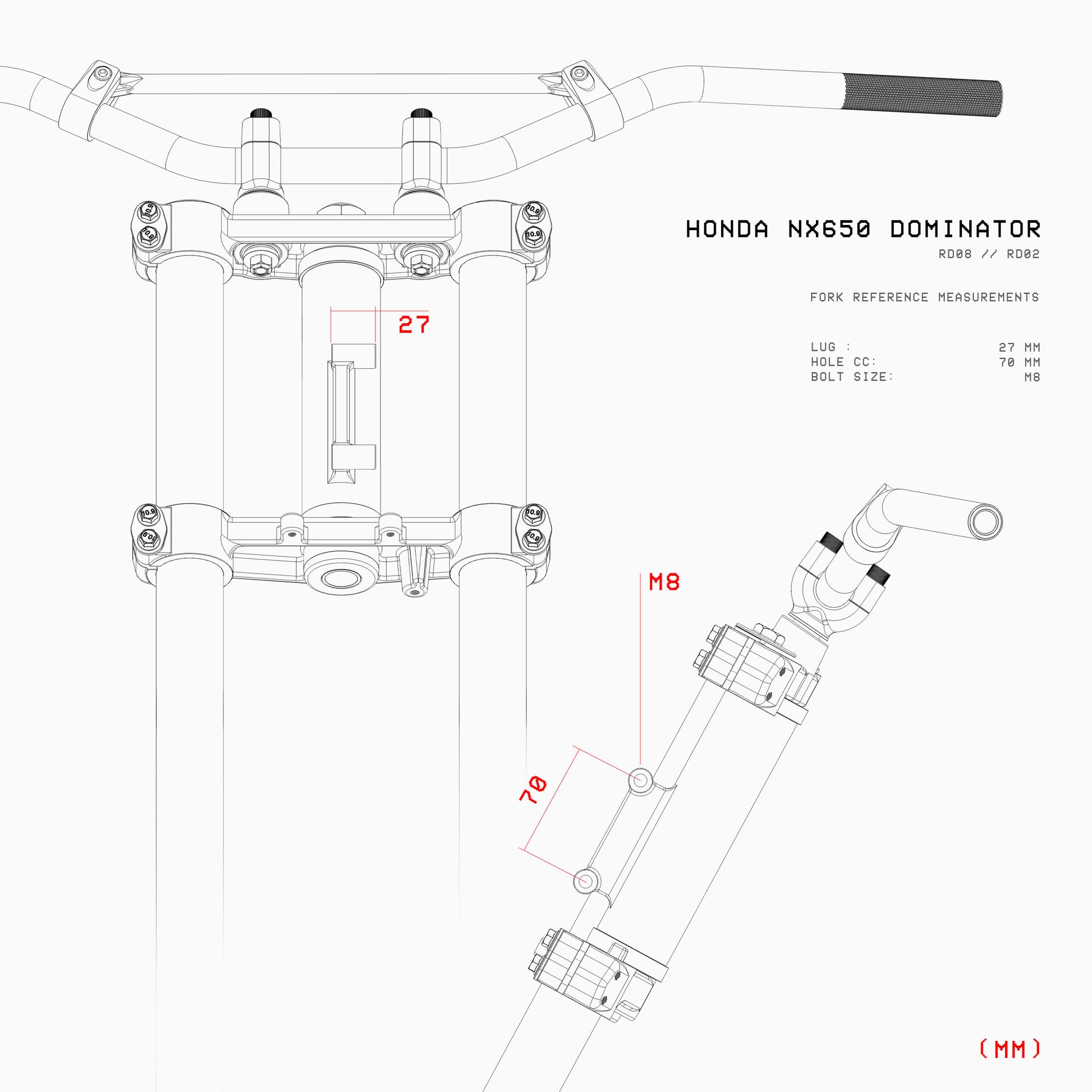

Designed to fit the Honda NX650 RD08 and RD02
